Precision Straight Piercing Needle
Sign-up to see pricePrecision Piercing Needles are sterilized using Ethylene Oxide(EO) gas. Each tri-beveled needle comes sterilized and pre-packaged in a pouch. This listing is for a single 48mm (~2") needle that comes in a pre-sterilized package. The chart below outlines the gauge, inner diameter, and the thickness of the tube for the needle gauge you choose.
Product Details:
- Material: 316L ASTM Stainless Steel
- Needle Gauge Options: 20g up to 4g
- Needle Length: 48mm (~2")

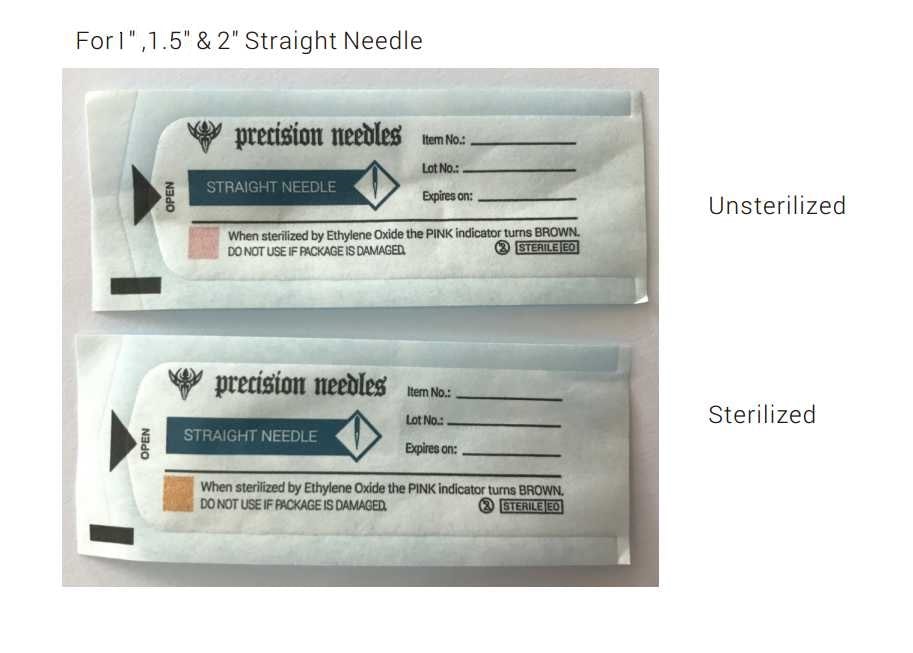

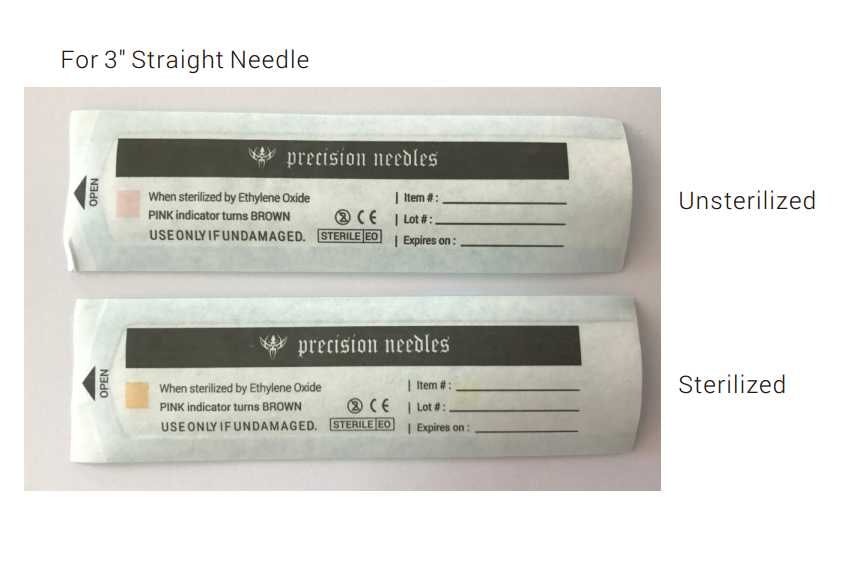

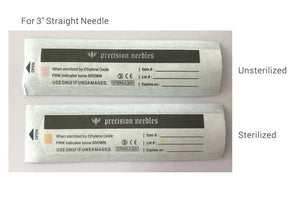

- Sterilized by Ethylene Oxide (EO) gas and individually packaged
- Price per one piercing needle
Piercing Needle By the Gauge Chart:
| Gauge (Outer Diameter) | Inner Diameter | Thickness of Tube |
| 20g~0.8mm | 0.43mm | 0.18mm |
| 19g~0.88mm | 0.52mm | 0.18mm |
| 18g~1.03mm | 0.67mm | 0.18mm |
| 17g~1.13mm | 0.77mm | 0.18mm |
| 16g~1.26mm | 0.90mm | 0.18mm |
| 15g~1.46mm | 1.10mm | 0.18mm |
| 14g~1.62mm | 1.26mm | 0.18mm |
| 13g~1.82mm | 1.46mm | 0.18mm |
| 12g~2.10mm | 1.70mm | 0.20mm |
| 11g~2.38mm | 1.98mm | 0.20mm |
| 10g~2.76mm | 2.36mm | 0.20mm |
| 8g~3.36mm | 2.96mm | 0.20mm |
| 6g~4.20mm | 3.70mm | 0.25mm |
| 4g~5.0mm | 4.50mm | 0.25mm |
